MPI Accessories

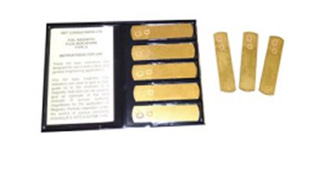

Castrol Strips

A set of 5 flux indicator strips - Type I (Type G) Brass Finish - same as Castrol Strips but not made by Castrol. Flux indicators which respond to the tangential component of the field Hin air above the surfaces of magnetized work pieces give excellent evidence of the directions of the field. The indicators can only be used to give an estimate of the strength of the field when the work piece is magnetized by the current flow technique, this is because when other methods of magnetization are used (e.g. a coil), a magnetic field is created in the air whether there is a ferromagnetic item present or not and the indicator will respond to such a field. This being so no semi-quantitative estimate of the field strength can be made.

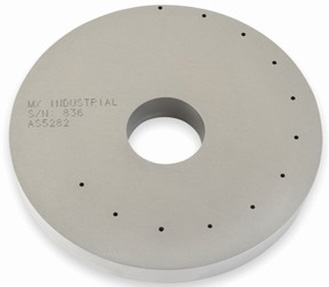

Ketos Ring

The Ketos Ring is used to check overall performance of the magnetic particle examination system. The Ketos Ring is 5" in diameter and .875" thick, with a 1¼" diameter center hole. The block includes (12) thru-holes at .070" diameter and distances of .070, .140, .210, .280, .350, .420, .490, .560, .630, .700, .770, and .840" from the OD surface.

Each block has a Certification Report that includes::
  • Material Test Report showing ring machined from AISI O-1 Tool Steel..
  • Certification stating ring has been heat-treated after manufacture to SAE-AS5282.
  • They make easier for you to adjust the magnetic practicle suspension with no scattering dust while magnetic practicles are measured.
  • As-built hardness reported in Rockwell "B".
  • Amperage and Hole Indication report and plot.
  • Dimensionally certified to MIL-STD-1949A, ASTM E1444, McDonnell Douglas P.S. 21201, DPS 4.704, and SAE-AS5282.



Magnetizing Digital Ammeter

Make Magmatic NDT Systems
Type Digital
Digits XXXX
Application AC/HWDC/FWDC
Range 9000 Amperes
Facility Peak Hold /Memory Retention/ Reset for Next shot
Input Power 230 V Single Phase AC
Dimensions 96 mm x 96 mm



DIGITAL GAUSS METER-(20-0-20)

  • Full colour 160 x 128 OLED display - with adjustable brightness.
  • Retro deflection needle mode - readings in 0.1G increments .
  • Digital display mode - large numerical values displayed in 0.1G increments.
  • Gauss trip - background becomes red to notify operator when a reading exceeds 2G, 5G or a customer defined Gauss value upon request (default 3G) .
  • Battery gauge function - uses easily to obtain AAA batteries and supplied with 2 x 1.5V batteries as standard .
  • Small hand-held unit - Aluminium construction with electronic unit not damaged by excessive overloads like mechanical units.
  • Zero function - negate internal residual magnetism associated with using indicator in strong fields.


Filter Glass

Filter Glass feature a panel of 16 powerful UV-A (365 nm) LEDs specially engineered for non-destructive testing applications. These versatile, stationary light sources can be installed overhead or in-line, and can be ganged together to provide an even wider coverage area.

Ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications requiring maximum uniformity of UV-A coverage over a large area.



Magnetic stripe card

Filter Glass feature a panel of 16 powerful UV-A (365 nm) LEDs specially engineered for non-destructive testing applications. These versatile, stationary light sources can be installed overhead or in-line, and can be ganged together to provide an even wider coverage area.

Ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications requiring maximum uniformity of UV-A coverage over a large area.

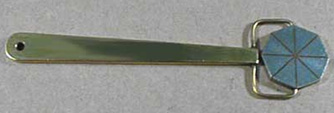

Pie Gauge

The pie gauge is a disk of highly permeable material divided into four, six, or eight sections by nonferromagnetic material. The divisions serve as artificial defects that radiate out in different directions from the center. The diameter of the gauge is 3/4 to 1 inch. The divisions between the low carbon steel pie sections are to be no greater than 1/32 inch. The sections are furnace brazed and copper plated. The gauge is placed on the test piece copper side up and the test piece is magnetized. After particles are applied and the excess removed, the indications provide the inspector the orientation of the magnetic field..

The principal application is on flat surfaces such as weldments or steel castings where dry powder is used with a yoke or prods. The pie gauge is not recommended for precision parts with complex shapes, for wet-method applications, or for proving field magnitude. The gauge should be demagnetized between readings.

Several of the main advantages of the pie gauge are that it is easy to use and it can be used indefinitely without deterioration. The pie gauge has several disadvantages, which include: it retains some residual magnetism so indications will prevail after removal of the source of magnetization, it can only be used in relatively flat areas, and it cannot be reliably used for determination of balanced fields in multidirectional magnetization.




UV Lamp

UV Light Specification

UV Light Model – Magma 100 F
  • Fan cooled Light Weight
  • Visible Light emission is 10 lux @ 325 mm height
  • Emits UV Light – 365 nm
  • Kopp makes Glass Filter
  • 30V 50 Hz Single Phase Power Supply Input
  • Suitable for 24x 7 operations
  • 100 Watt Bulb
  • Life approx. 2000 hours
  • Choke –Separate with cable.
  • Meets all ASTM Specifications

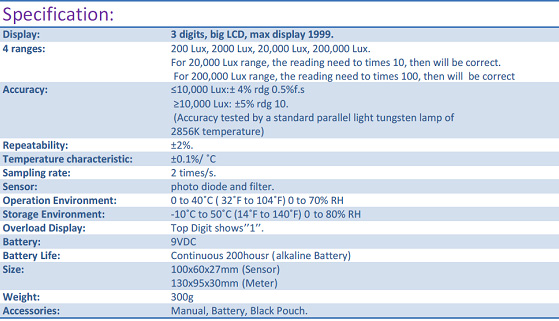

White Light Meter

Features:
  • 1. Wide range: from 0.1 Lux to 200, 000 Lux.
  • 2. Accurate test, fast response, and auto zero adjustment.
  • 3. Data hold: hold the current test result.
  • 4. symbol and unit display, easy to read.
  • Low battery indicator and auto power off.
